-- Cutters->Turning Tools

Name:Boring Bars
Type:SCLP, SCLC

Description:

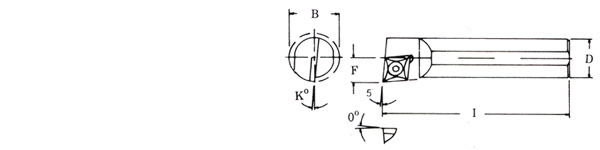

Order No.		Insert	Dimensions(mm)					Parts
Righthand	Lefthand		D	F	I	B	K^o
S08H-SCLPR06 S10K-SCLPR06 S12M-SCLPR06	S08H-SCLPL06 S10K-SCLPL06 S12M-SCLPL06	CPMT0602 CPMT0602 CPMT0602	08 10 12	6 7 9	100 125 150	12 14 18	7^o 7^o 6^o	M2.5x0.45	FT-8
S10K-SCLPR08 S12K-SCLPR08	S10K-SCLPL06 S12K-SCLPL06	CPMT0802 CPMT0802	10 12	7 9	125 150	14 18	7^o 7^o	M3x0.5	FT-10
S12M-SCLPR09 S16M-SCLPR09 S20Q-SCLPR09	S12K-SCLPL09 S16M-SCLPL09 S20Q-SCLPL09	CPMT0903 CPMT0903 CPMT0903	12 16 20	9 11 13	150 150 180	18 22 26	6^o 4^{o 4o}	Mx3.5x0.6	FT-15

Order No.		Insert	Dimensions(mm)					Parts
Righthand	Lefthand		D	F	I	B	K^o
S08H-SCLCR06 S10K-SCLCR06 S12M-SCLCR06 S16R-SCLCR06	S08H-SCLCL06 S10K-SCLCL06 S12M-SCLCL06 S16R-SCLCL06	CCMT0602 CCMT0602 CCMT0602 CCMT0602	08 10 12 16	6 7 9 11	110 125 150 200	12 14 16 20	9^o 7^o 6^o 7^o	M2.5x0.45	FT-8
S16R-SCLCR09 S20S-SCLCR09 S25T-SCLCR09	S16R-SCLCL06 S20S-SCLCL06 S25T-SCLCL06	CCMT09T3 CCMT09T3 CCMT09T3	16 20 25	11 13 17	200 250 300	20 25 32	7^o 5^o 5^o	M3.5x0.6	FT-15
